What's in the box?
- PRO510XL CB Radio
- Microphone
- Mounting Bracket
- Mounting Hardware
- Other printed material
Product Specs
- 40 AM Channels
- 26.965 to 27.504 MHz frequency range
- Phase Locked Loop (PLL) synthesizer frequency control
- /- 0.005% frequency tolerance
- Dynamic plug-in microphone
- 13.8 V DC nom. Input Voltage
- Current Drain TX full mod 1.7A, RX with max audio output, 1.7A
- Size 4 1/2" x 6 3/4" c 1 3/8"
- Weighs 1 pound 9 ounces
- UHF SO239 Antenna connector
- LED meter indicates relative RF output and received signal strength
Transmitter
- power output is 4 watts
- Modulation is Class B amplitude modulation
- Frequency Response is 300-2500 Hz
- Output Impedance is 50 ohms, unbalanced
Receiver
- Selectivity 6 dB @ 7 kHz, 70 dB @ 10 kHz typical
- Image rejection 80 dB typical
- IF frequency is 1st 10.692 MHz and 2nd 450 kHz
- Automatic Gain control is less than 10 dB change in audio output for inputs from 10-50,000 microvolts
- Squelch is adjustable with a threshold less than 1
- Audio output power is 7 watts max, into 8 ohms
- Frequency response is 300-2000 Hz
- Distortion is less than 10% at 4 watts, 1000 Hz
- Internal speaker is 16 ohms, 3 watts round
- Two year manufacturer warranty

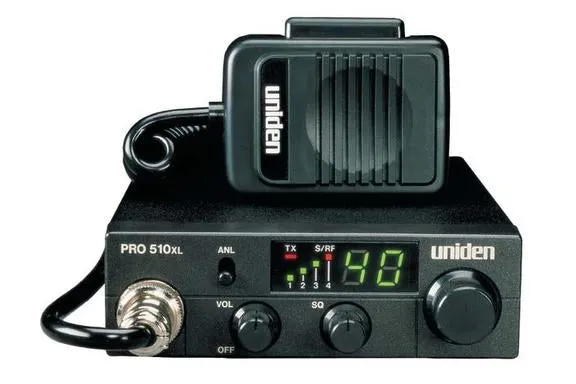

Uniden PRO510XL professional 40 Channel CB Radio. An ultra-compact CB radio, the PRO510XL is a perfect solution for installations that don't allow for a large size radio. This radio only incorporates the most essential features for a CB radio. This is the secret that allows the PRO510XL to be one of the smallest on the market. Its small size and incredible durability make this CB a favorite for off road drivers and farm vehicles.
The PRO510XL from Uniden is a great talking radio that doesn't have many bells and whistles, however, the PRO510XL has all the essential features that will keep you safe while on the road whether for work or fun.
A full 4 watts of RF output the same FCC legal standard for all CB radios is working hard for you in the PRO510XL. Automatic noise limiter is selectable by front panel switch you decide when to cut background noise, bright easy to see channel indicator and Transmit, S/RF digital meter provide the most important data at a glance. The front mount Dynamic mic just sounds good, no over modulation or excess feedback from this mini-titan!
